Hidromas 5-220-1750-C Dump Trailer Cylinder

Description

Dump Truck Cylinder:

The hydraulic lifting cylinder for dump trucks operates based on the hydraulic principle and the force transmitted by pressing a fluid through pipes. Essentially, the hydraulic system uses fluid to transfer energy between different components. The operation of a hydraulic system begins when the dump truck’s pump transfers the hydraulic fluid from the reservoir into the cylinder.

One-way telescopic cylinder for trailer dump truck:

One-way telescopic cylinders for trailer dump trucks are among the most commonly used hydraulic cylinders, usually utilized in 5-stage cylinders with an extension length of 6 meters.

Trailer dump trucks are produced in two main types: two-axle trailer dump trucks and three-axle trailer dump trucks.

Two-axle trailer dump truck cylinder:

Two-axle trailer dump trucks are usually pulled by a twin tractor with three axles. In this type of dump truck, shorter cylinders are required. One of the frequently used cylinders in this category is the Hidromas dump truck cylinder model 5-220-1745-03. This cylinder has an internal diameter of 220 mm and a closed length of 1745 mm.

Three-axle trailer dump truck cylinder:

In three-axle trailer dump trucks, two wheels are attached to each axle and they are hauled by a single tractor. It is a source of pride that major companies in Iran have developed the design of three-axle trailer dump trucks and offer high-quality productions . This has allowed them not only to meet domestic demand but also to export a significant portion of their products.

Among these companies are Mamoot, Maral, Urum Trailer, and several other large companies, most of which use Hidromas 5-stage telescopic cylinders for trailer dump trucks. Among these, 5-stage cylinders with diameters of 20 or 22 centimeters and an average extension length of 5.5 to 6 meters are very common and widely used.

Raman Shams Industries, in addition to distributing and selling three-axle trailer dump truck cylinders, also provides after-sales services, maintenance, and periodic repairs for these cylinders.

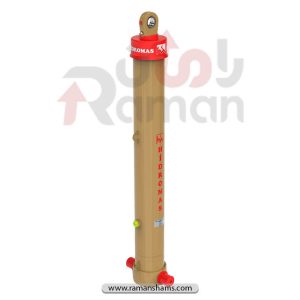

Hidromas  Single Acting  Telescopic  Cylinder  5-220-1750-03 :

Dump truck telescopic cylinder type C from Hidromas brand in Turkey has 5 stages, with effective diameter of 197 mm  and  closed length of approximately 170 cm. This cylinder has oil volume of 160 liters, capacity of about 58 ton at 190 bar and the cylinder weighs 350 kg.

Due to its high-quality construction, this type of cylinder is resistant to heavy loads and harsh conditions, making it highly applicable for use in trailers.

Experienced engineers at Raman Shams Industries are ready to provide consultation for the optimal selection of telescopic cylinders used in the dump trucks produced for esteemed companies and manufacturers. Additionally, you can contact the workshop unit of Raman Shams Industries to inquire about the prices of second-hand telescopic cylinders, stock antenna cylinders, and used antenna dump truck cylinders.
