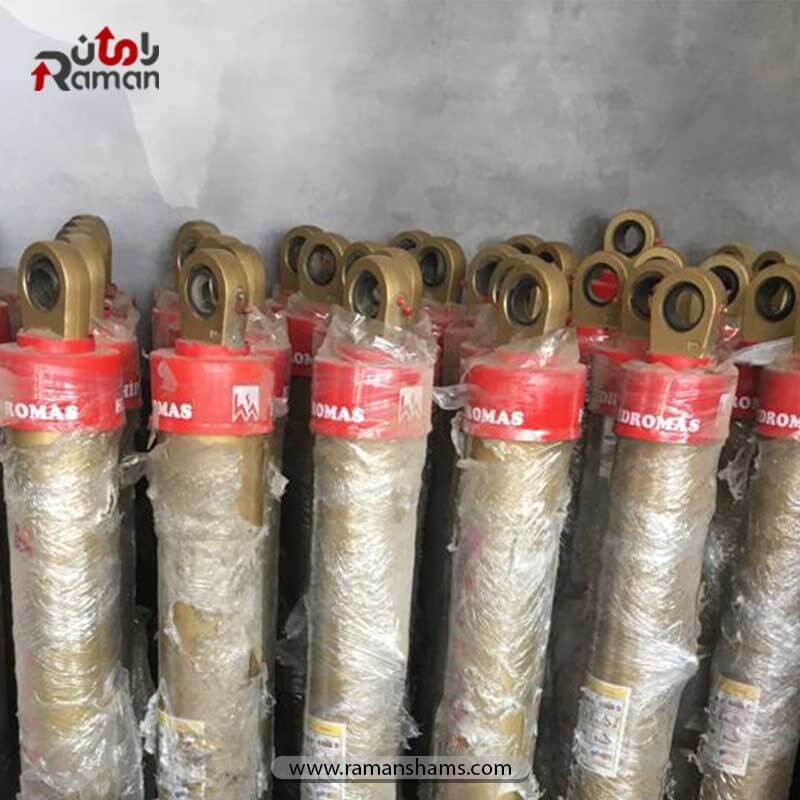

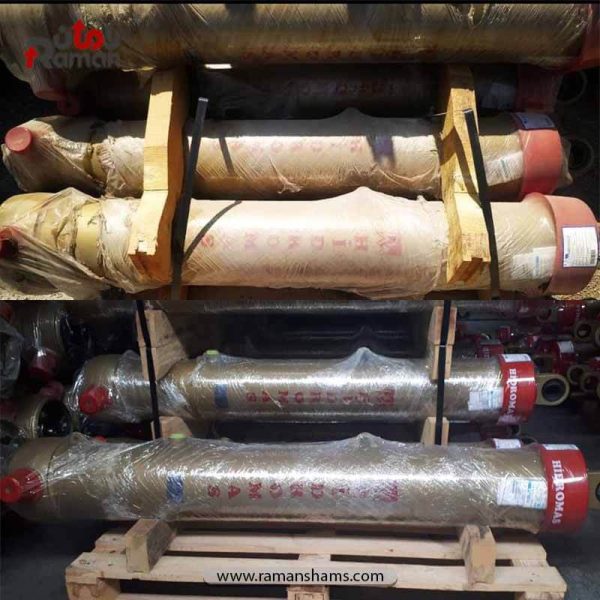

Hidromas 4-155-1312-C Dump Truck Cylinder

Description

Dump Truck Cylinder :

Dump truck cylinders vary in diameter, length, number of telescopic stages, and type of head and end connections. A dump truck can utilize a variety of cylinders depending on the body design of the manufacturer. Engineers at Raman Shams Industries are ready to provide advice to dump truck body manufacturers for the proper selection of dump truck cylinders and hydraulic systems.

Generally, two types of cylinders are used in dump trucks: telescopic dump cylinders and tipper scissor cylinders.

Dump trucks and dump semi-trailers use only telescopic cylinders, while dump trucks use both telescopic and tipper scissor cylinders.

Telescopic dump cylinders are produced and used in various types, which are generally divided into those mounted at the front of the body and those mounted in the middle of the chassis. In Iran, mounting at the front of the body is more common. In this regard, Raman Shams Industries provides installation instructions for various types of telescopic dump truck cylinders in their manuals, which are available for dump truck body manufacturers to study.

Dump Truck  Hydraulic  Cylinder :

A hydraulic cylinder converts the high-pressure fluid flow, which in most cases is oil based on petroleum, into linear motion.

One of the most notable advantages of hydraulic cylinders is their ability to transfer a large and controllable force in a small space. Reliability and predictability, aided by calculations, are among the greatest strengths of hydraulic cylinders, which are widely accepted by engineers in the industry.

When a hydraulic cylinder needs to operate in a confined space with a long stroke, a telescopic hydraulic cylinder is used. In a telescopic cylinder, tubes of different sizes, where the outer diameter of the smaller tube is equal to the inner diameter of the larger tube, move inside each other. Telescopic cylinders can be produced with multiple stages (steps) based on the consumer’s needs.

These types of cylinders are produced in both single-acting and double-acting versions, and you can review this option at the Raman Shams Industries store.

Hidromas Dump Truck Cylinders :

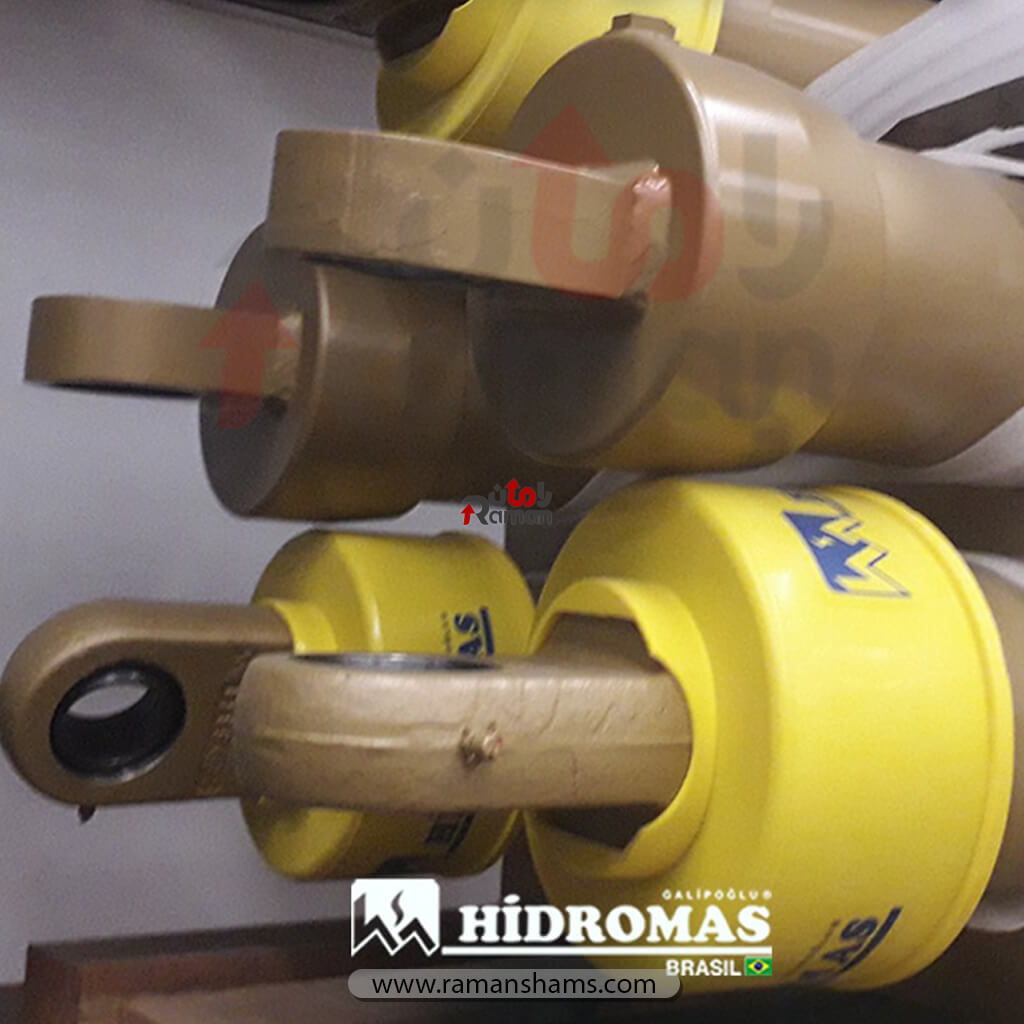

Hidromas is a large company with representation in several countries. The company started its operations in Turkey and, as it expanded its activities, established agencies in different countries to reduce costs, where it produces dump truck cylinders locally.

Hidromas’ Position in the World :

Hidromas is one of the leading companies in the world for manufacturing telescopic dump truck jacks. The company has outpaced its competitors in the Middle East and East Asia in terms of quality and quantity, establishing a prominent position in its industry.

Hidromas’ Position in Iran :

In Iran, major dump trailer manufacturing companies offer their products exclusively with Hidromas dump truck cylinders. Companies such as Donyaye Mamoot, Maral Sanat Javid, Orom Trailer, and many other reputable companies in the dump truck body manufacturing industry only use Hidromas dump truck cylinders.

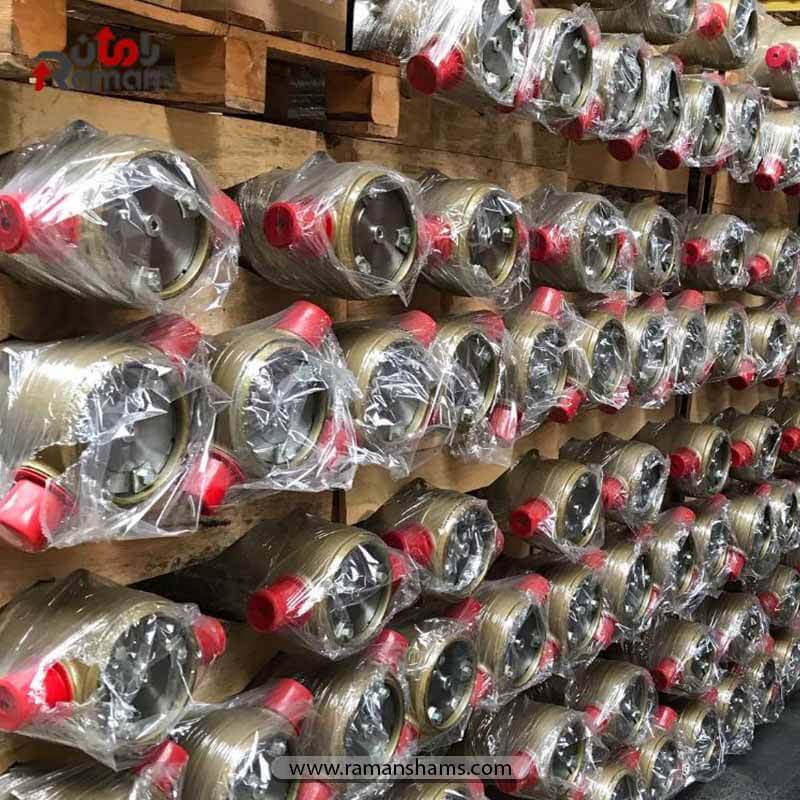

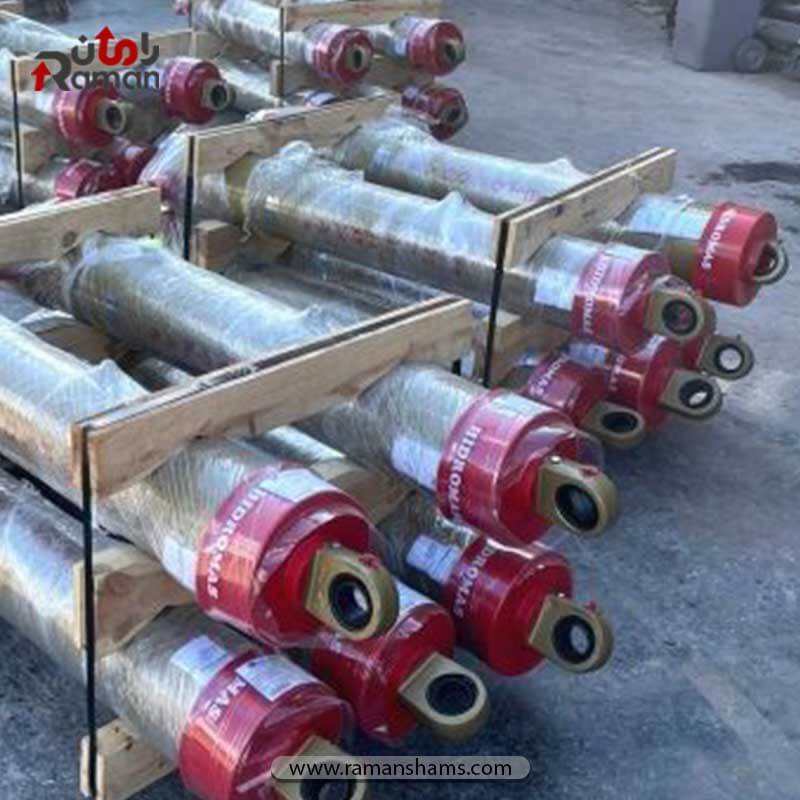

In the commercial unit of Raman Shams Industries, various types of commonly used telescopic cylinders are available. Additionally, any size of telescopic hydraulic jack required by customers is designed custom-made and, depending on the conditions, can be produced at Raman Shams or ordered from large foreign companies. For more information, please contact us.

Hidromas Cylinder Selection Guide for 10-Wheel Dump Trucks :

For dump bodies designed for 10-wheel trucks, there are various sizes and lengths available. Selecting the right cylinder depends on the dump body length, stroke length, and dump truck tonnage. One of the most commonly used cylinders in this category is the Hidromas dump cylinder model 4-155-1312-03.

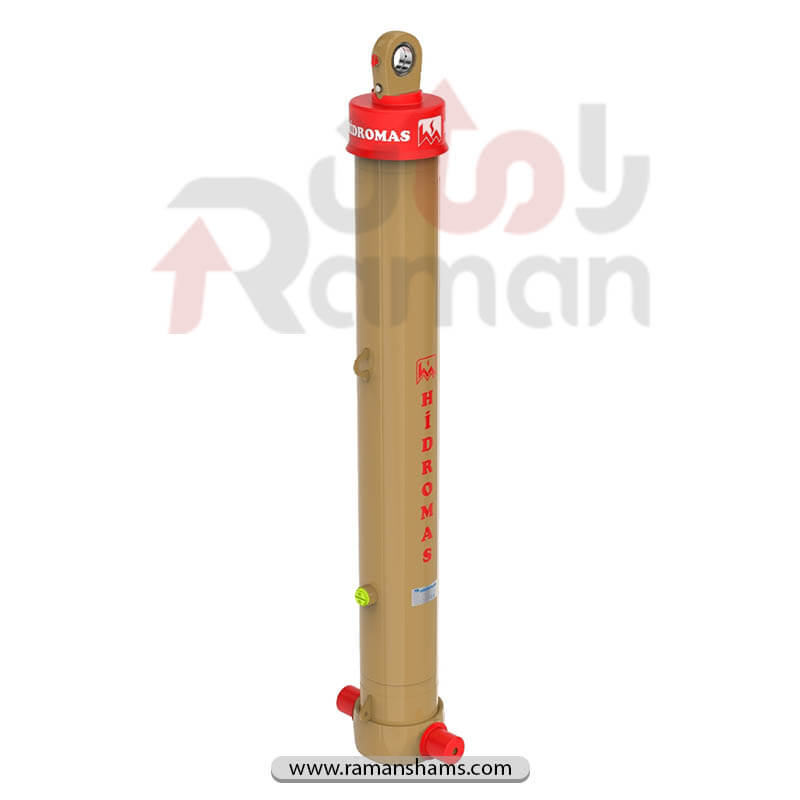

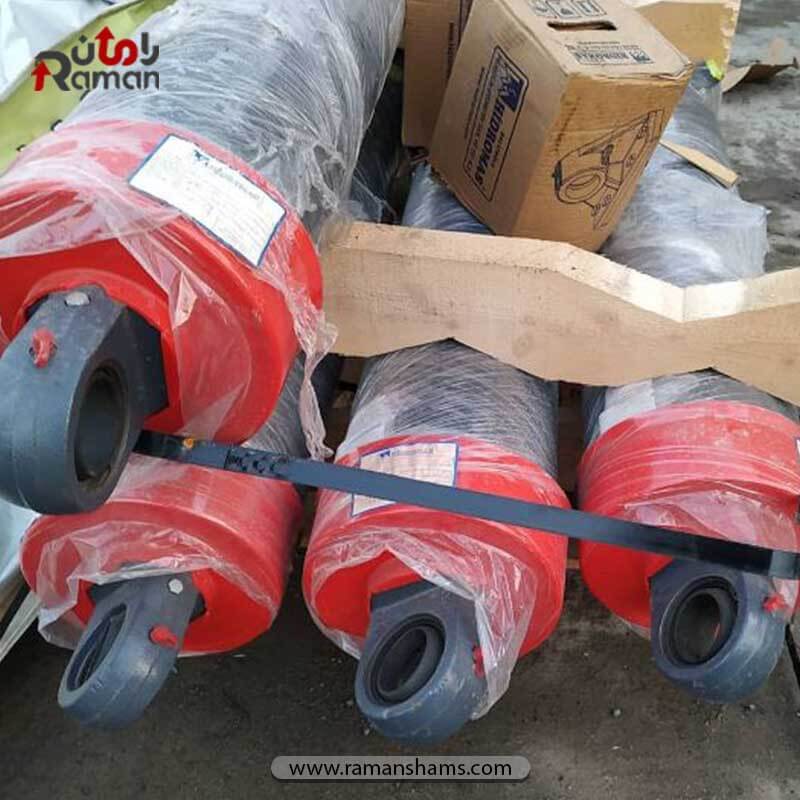

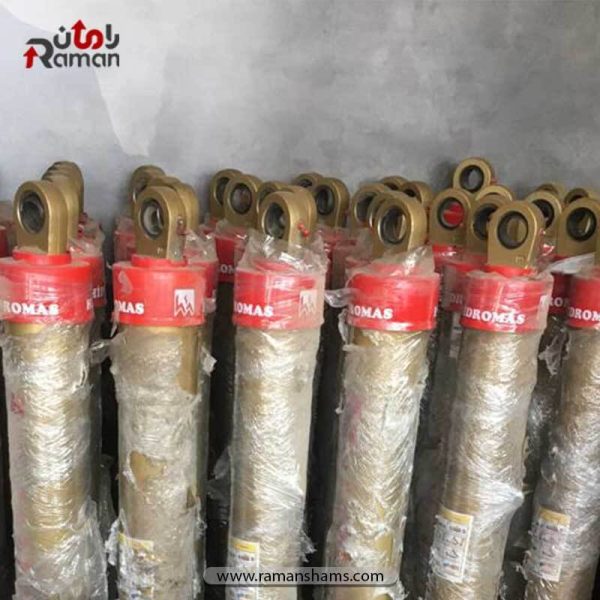

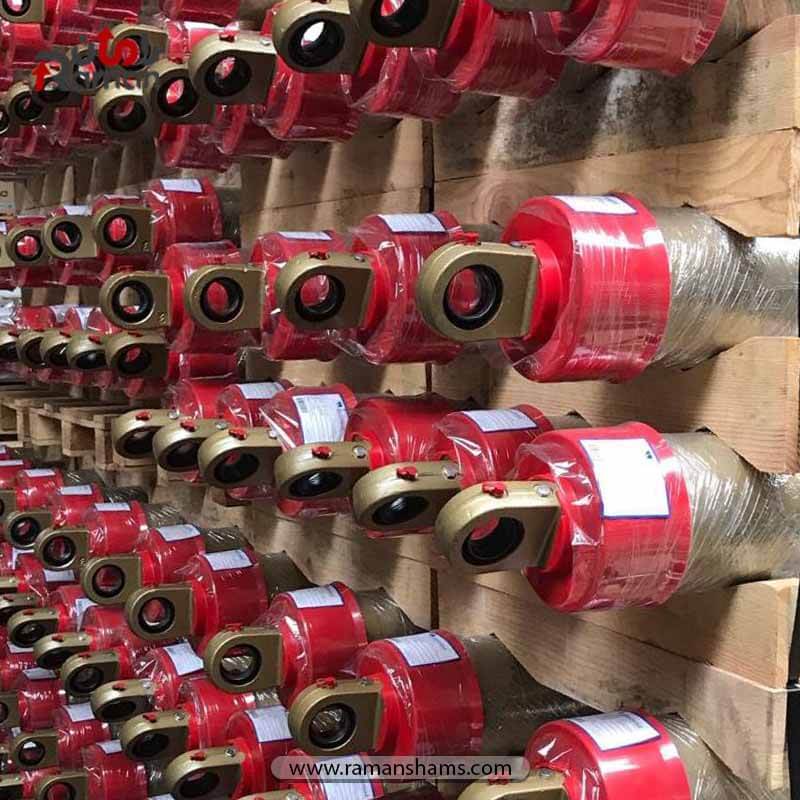

Hidromas  Single Acting  Telescopic  Cylinder  4-155-1312-03 :

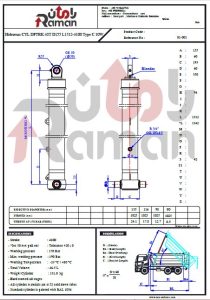

Dump truck telescopic cylinder type C from Hidromas brand in Turkey has 4 stages, with effective diameter of 135 mm  and  closed length of approximately 130 cm. This cylinder has oil volume of 45 liters,  capacity of about 27 ton at 190 bar and the cylinder weighs 136 kg.

Thanks to its high-quality construction, it is resistant to heavy loads and harsh conditions, making it ideal for Ten-wheel trucks.

Experienced engineers at Raman Shams Industries are ready to provide consultation for the optimal selection of telescopic cylinders used in the dump trucks produced for esteemed companies and manufacturers. Additionally, you can contact the workshop unit of Raman Shams Industries to inquire about the prices of second-hand telescopic cylinders, stock antenna cylinders, and used antenna dump truck cylinders.
