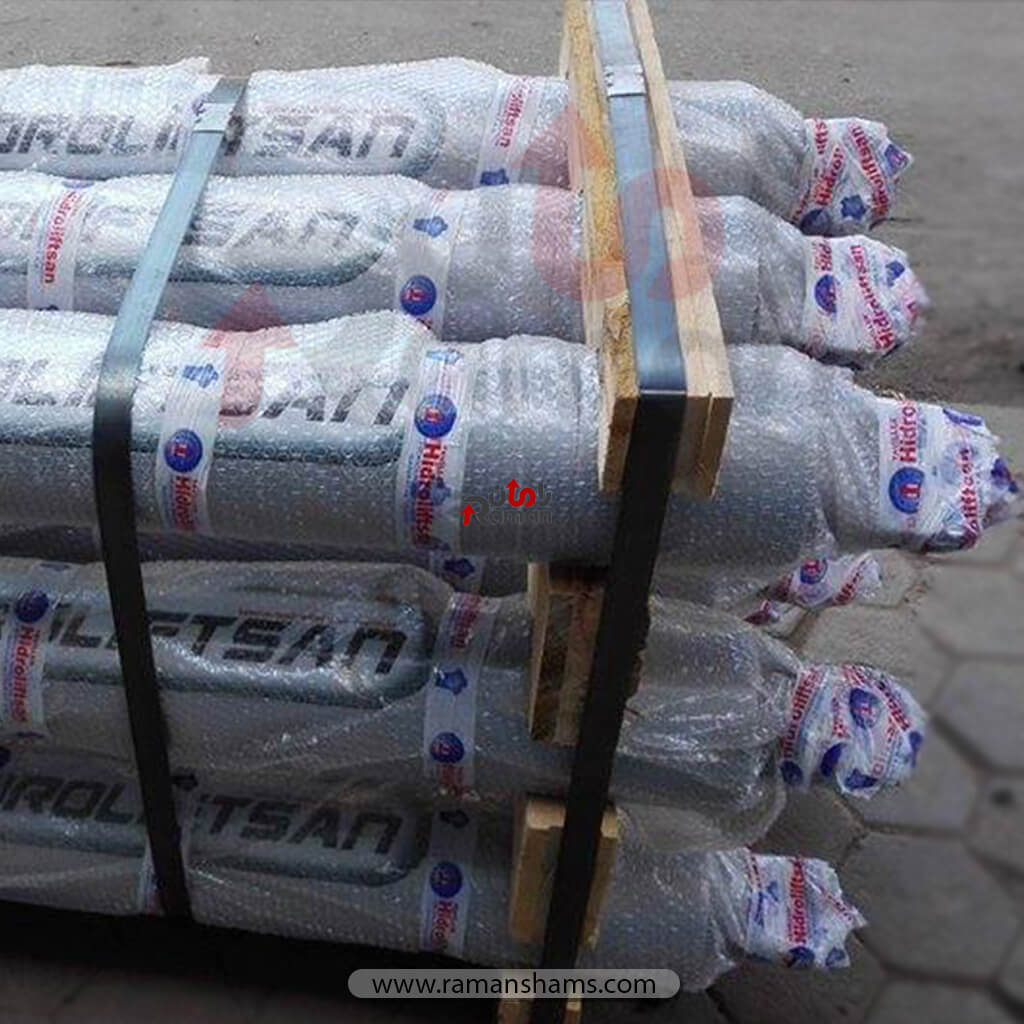

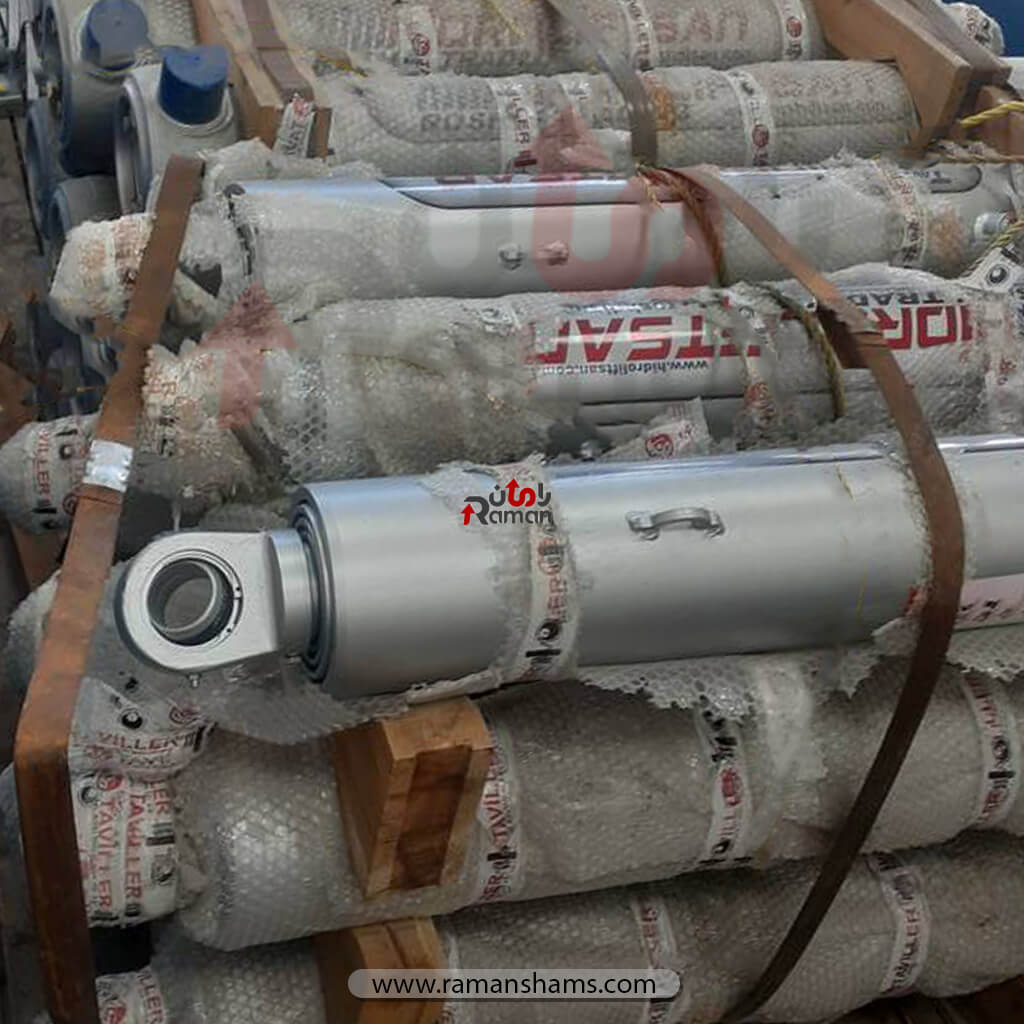

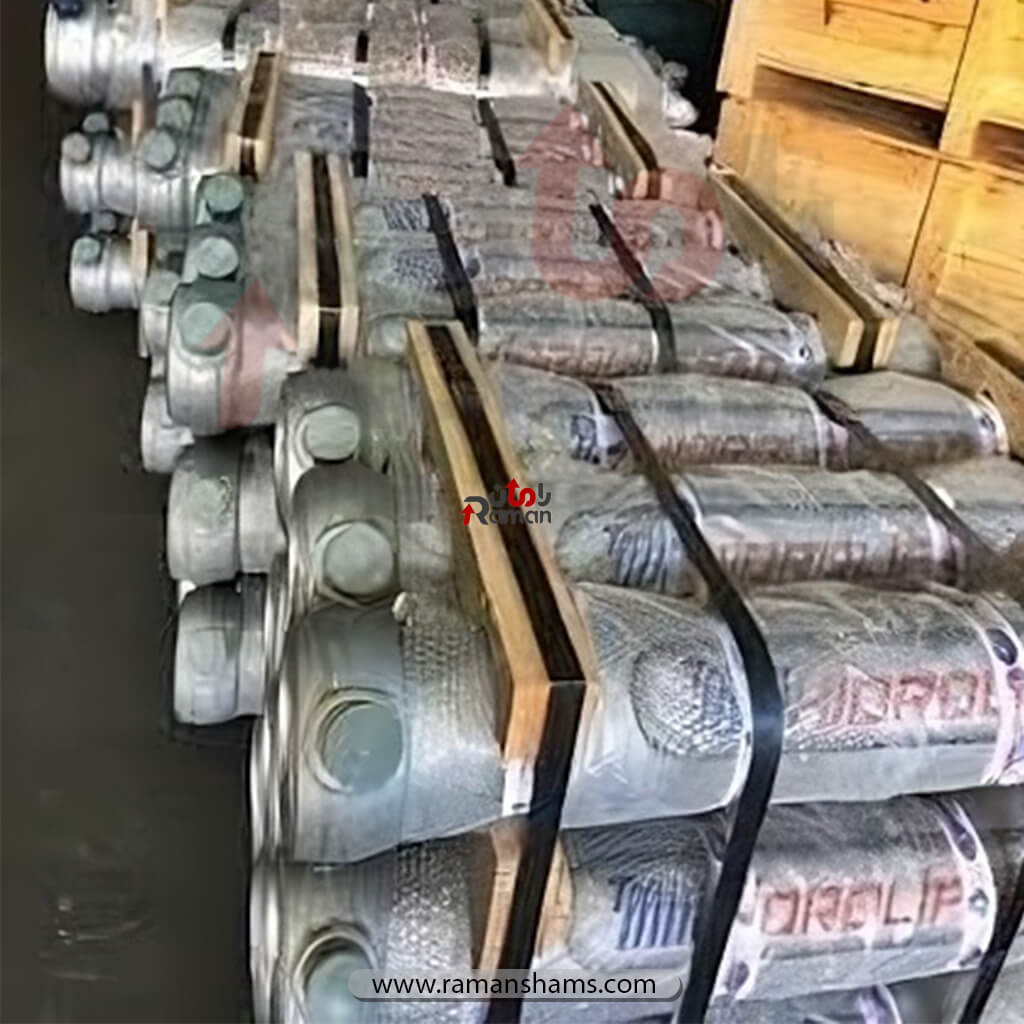

Hidroliftsan 4-165-1256-C Dump Truck Cylinder

Description

Single Acting Telescopic Hydraulic Cylinder :

In a single acting telescopic cylinder, hydraulic fluid (oil) is used to extend the cylinder in only one direction (usually upward). This cylinder consists of multiple nested stages (tubes with decreasing diameters) that extend sequentially under hydraulic pressure. Retraction relies on gravity or an external force. The multiple stages enable a longer stroke compared to a simple single-acting cylinder. Overall, single-acting telescopic cylinders are an efficient and versatile choice for applications requiring a compact size combined with a long stroke.

Dump Truck Single-Acting Telescopic Cylinder :

15-ton, 10-wheeled dump trucks are among the most widely used machinery in large-scale construction, mining, and bulk material transportation projects. Due to the larger dimensions of the dump body compared to six-wheel models, the telescopic cylinder employed must have higher capacity and a longer stroke length. Typically, these trucks use cylinders with a stroke length ranging from 3.8 to 4.2 meters and diameters between 165 to 180 millimeters to effectively handle the heavier loads and extended body length.

Hidroliftsan Company Introduction :

Hidroliftsan is a subsidiary of Tavilers, a Turkish company. Tavilers entered the hydraulic and pneumatic cylinder industry in 1997. Currently, Tavilers manufactures honed cylinders and Hard chrome-plated shafts. Hidroliftsan, as part of Tavilers, specializes in producing dump truck telescopic cylinders.

Hidroliftsan Products :

Hidroliftsan exclusively manufactures hydraulic cylinders with a primary focus on dump truck cylinders.

Raman Shams Industries not only modifies Hidroliftsan cylinders but also supplies components and parts for Hidroliftsan dump truck cylinders.

Causes of Oil Leakage in Hidroliftsan Cylinders :

For detailed information about the causes of oil leakage and failures in Hidroliftsan cylinders, please refer to the single-acting telescopic dump truck cylinder user manual. In summary, the primary causes of oil leakage in Hidroliftsan dump truck cylinders include improper installation, unloading on slopes, the use of poor-quality oil, the presence of contaminants in the oil, and seal deterioration.

For troubleshooting and repairs of Hidroliftsan cylinders, please get in touch with Raman Shams Industries. Experienced engineers at Raman Shams are ready to provide consultation to help manufacturing companies select the optimal telescopic cylinder for their dump truck applications.

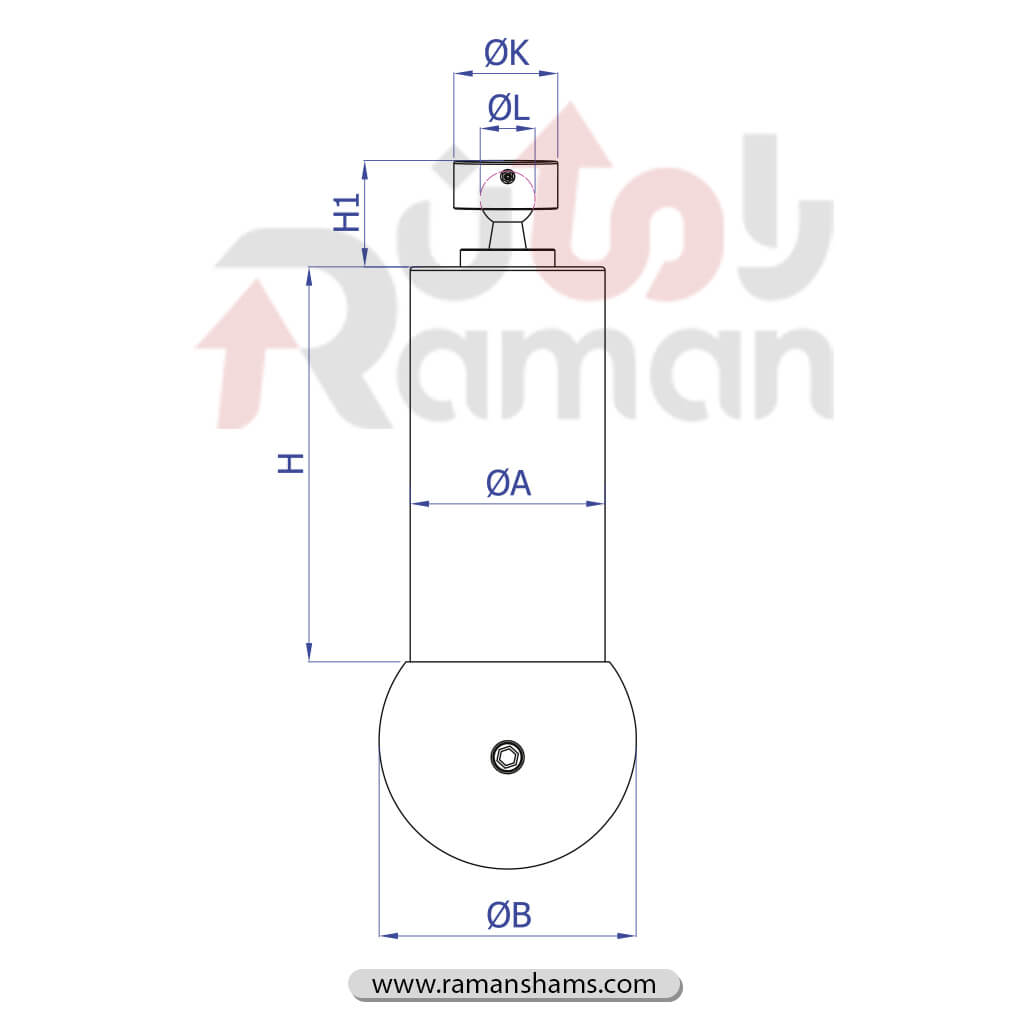

Hidroliftsan Dump Truck Cylinder 4-165-1256-C :

Dump truck telescopic cylinder type C from Hidromas brand in Turkey has 4 stages, with effective diameter of 135 mm and closed length of approximately 130 cm. This cylinder has oil volume of 42 liters, capacity of about 30 tons at 210 bar, and the cylinder weighs 163 kg.

Experienced engineers at Raman Shams Industries are available to provide consulting services to help manufacturers select the optimal telescopic cylinders for their dump truck production lines.
