Binotto 5-191-1551-H Dump Trailer Cylinder

Description

Dump Truck Telescopic Cylinder :

The operation of a telescopic hydraulic cylinder for a dump trailer is effortless yet highly efficient. This cylinder uses dump truck fluid to generate the pressure required to push and retract the various stages. A step-by-step explanation of how it works is as follows:

• Fluid Entry into the Cylinder: The fluid is pumped into the cylinder. It first acts on the largest stage (or sleeve), causing it to extend.

• Sequential Extension: Once the first stage is fully extended, the fluid flows into the next stage. This process continues until all stages are extended. This sequential extension enables the cylinder to achieve the required lifting force.

• Discharging the Load: As the telescopic cylinder extends, the trailer bed rises and the load slides off due to gravity. The increased length of the cylinder provides the necessary lifting power for effective and complete unloading.

• Retraction: After the load is discharged, the dump truck system reverses the fluid flow, causing the cylinder stages to retract into their compact form. The cylinder returns to its compressed position, ready for the next operation.

Telescopic cylinders are popular in dump trailers due to their ability to deliver high lifting power while occupying minimal space when not in use. This design ensures the trailer is fully utilized at the worksite with minimal downtime.

Introduction to Binotto Company :

Binotto is a leading global company specializing in dump truck systems, particularly telescopic dump cylinders for trucks and trailers. With service coverage in most countries and dedicated manufacturing facilities in Italy, along with five other plants — 3 in Europe, 1 in Brazil, and 1 in China — Binotto is a recognized name in the industry.

Raman Shams Industries is here to help you select the right dump cylinder for trailers, trucks, and light-duty vehicles.

Binotto  Single Acting  Telescopic  Cylinder  5-191-1551-H :

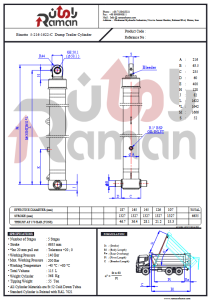

Telescopic dump trailer cylinder type H from the Italian brand Binotto has 5 stages, with effective diameter of 165 mm and closed length of approximately 160 cm. This cylinder has oil volume of 80 liters,  capacity of about 42 ton at 200 bar pressure, and the cylinder weighs 362 kg.

Thanks to to its high-quality Thanks to, this type of cylinder is resistant to heavy loads and harsh conditions, making it ideal for semi dump trailer applications.

Raman Shams Industries is ready to provide services such as sales, repair, and maintenance of dump trailer cylinders, dump truck hydraulic cylinders, and light dump truck cylinders to valued customers. For more information regarding the dump truck telescopic cylinders prices, as well as new and used telescopic hydraulic cylinders, please contact Raman Shams Industries.
